Recommended Antennas
GNSS antennas
TW8889 | Dual Band Antenna
These high performance antennas have been especially chosen for their excellent performance/size compromise.
The TW8889 provides multi-constellation tracking capabilities, supporting a range of satellite systems including GPS L1/L2, GLONASS G1/G2/G3, BEIDOU B1/B2, GALILEO E1/E5b, and SBAS (WAAS/EGNOS/MSAS) signals.
Antenna usage for RTK, PPP and PPK
While this antenna offers a great mix of size and performance, they are not recommended for applications where reliable RTK, PPP or PPK is required.
They are however very good in standalone/SBAS GNSS.
Performance specifications
| Parameter | Specification |
|---|---|
| Architecture | Dual band, orthogonal feeds combined in a hybrid combiner, wideband LNA, band-split for narrow filtering. Immunity to LTW and other cellular signals. |
LNA Gain | 26dB typical |
| Noise figure | 2.5dB typ. at 25°C |
| VSWR (at LNA output) | < 1.5:1 typ. |
| Power consumption | 12 mA typ. |
Antenna gain (100mm ground plane) |
|
| Dimensions | Diameter: 47,3mm Height: 18,3mm |
Cable and Connector | 3m length Coax cable with SMA straight male (plug), |
| Weight | 52grams (without cable and connector) |
| Environmental |
|
| Datasheet |
A 100mm ground plane is highly recommended for these antennas.
Mechanical drawing
TW7972 | Triple Band Antenna with L-band | Side connector
These high performance antennas have been especially chosen for their excellent performance/size compromise.
The TW7972 provides multi-constellation tracking capabilities, supporting a range of satellite systems including GPS L1/L2/L5, GLONASS G1/G2/G3, BEIDOU B1/B2/B2a, GALILEO E1/E5a/E5b, L-Band correction, and SBAS (WAAS/EGNOS/MSAS) signals.
The TW7972 has a side connector which may not be suitable for all applications. The TW3972 has similar performances but with a through-hole connector.
Performance specifications
| Parameter | Specification |
|---|---|
| Calibration name | TWI7972+GP NONE |
| Architecture | Dual orthogonal feeds combined in quadrature, wideband LNA, band-split for narrow filtering. Immunity to LTE and other cellular signals. |
LNA Gain | 32dB typical |
| Noise figure | 2.5dB typ. at 25°C |
| VSWR (at LNA output) | < 1.5:1 typ. |
| Power consumption | 24 mA typ. |
Antenna gain (100mm ground plane) |
|
| Dimensions | Diameter: 69mm Height: 22mm |
Connector | SMA female |
| Mount | Magnetic and/or Threaded holes |
| Weight | 180 grams |
| Environmental |
|
| Datasheet |
A 100mm ground plane is highly recommended for these antennas.
Mechanical drawing
TW3972 | Triple Band Antenna with L-band | Through the hole connector
These high performance antennas have been especially chosen for their excellent performance/size compromise.
The TW3972 provides multi-constellation tracking capabilities, supporting a range of satellite systems including GPS L1/L2/L5, GLONASS G1/G2/G3, BEIDOU B1/B2/B2a, GALILEO E1/E5a/E5b, L-Band correction, and SBAS (WAAS/EGNOS/MSAS) signals.
The TW3972 has a through-hole connector which may not be suitable for all applications. The TW7972 has similar performances but with a side connector.
Performance specifications
| Parameter | Specification |
|---|---|
| Architecture | Dual orthogonal feeds combined in quadrature, wideband LNA, band-split for narrow filtering. Immunity to LTE and other cellular signals. |
LNA Gain | 37dB typical |
| Noise figure | 2.5dB typ. at 25°C |
| VSWR (at LNA output) | < 1.5:1 typ. |
| Power consumption | 24 mA typ. |
Antenna gain (100mm ground plane) |
|
| Dimensions | Diameter: 66mm Height: 21mm |
Connector | TNC female |
| Mount | Through-hole |
| Weight | 185 grams |
| Environmental |
|
| Datasheet |
We sell these antennas with a 100mm ground patch included.
Mechanical drawing
We provide only the flat radome version of the antenna.
Both the flat and conical radome have same performances. The conical radome is useful for applications where there is a risk for the accumulation of a substance on top of the antenna (such as snow).
HC977XF | Triple band Helical Calian Antenna
This multi constellation triple band (L1/L2/L5) antenna is particularly adapted for precision UAV applications, thanks to an ultra compact design, low power consumption and no ground plane requirement.
This antenna provides a triple frequency tracking on GPS, QZSS, GLONASS, GALILEO and BEIDOU and tracking of Navic in its L5 band
This antenna feature extra filtering elements for better interference rejection.
Specifications
| Parameter | Specification |
|---|---|
| LNA Gain | 35dB |
| Noise figure | 2.5 dB typ. |
| Power consumption | 31 mA |
| Antenna Gain at zenith | GPS |
| Dimensions | 44.2mm (dia.) x 62.4 mm (h.) |
| Mount | 3 x M2.5 screws |
| Connector type | SMA male |
| Weight | 42g |
| Environmental | -40 to 85°C IP-69K |
| Datasheet |

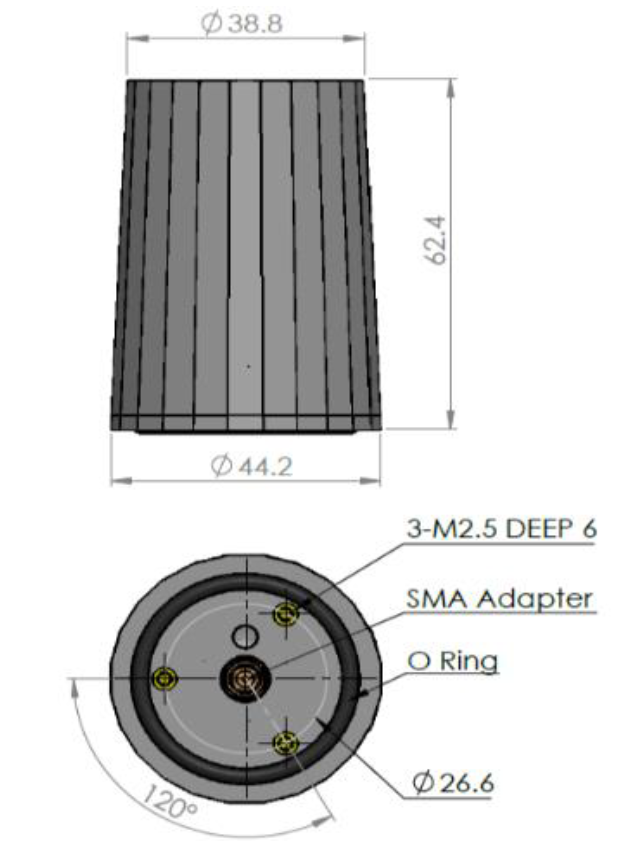

Mechanical drawing
Antenna cables
The following coax cables and adapters can be used to connect the antenna to Ellipse:
| Cable / accessory | Description |
|---|---|
Cable SMA Male/Male - 3m | Extension Cord, SMA, Male to Male, RG174/U RF COAX , IP68, 3m length Recommended to connect any patch antenna featuring a SMA connector. |
Cable SMA Male/Female - 3m | Extension Cord, SMA, Male to Female, RG174/U RF COAX , 3 m length. |
Ground Plane for Patch antenna | Ground Plane for Patch antenna. Strongly recommended to optimize performance of patch antennas |
CA-SMA-TNC-MF-RG316-0.15M | 0.15 meter adapter cable with straight SMA male plug/TNC female jack connectors and flexible RG316 coaxial cable. Not waterproof. Recommended to connect a TNC cable + Antenna to Ellipse. |
| CA-TNC-MM-RG223-3M | 3 meters sealed cable with straight TNC/TNC male plug connectors and flexible RG223 coaxial cable. |
| CA-TNC-MM-RG223-5M | 5 meters sealed cable with straight TNC/TNC male plug connectors and flexible RG223 coaxial cable. |
| CA-TNC-MM-LMR240-10M | 10 meters sealed cable with straight TNC/TNC male plug connectors and flexible LMR240 coaxial cable. |
| CA-TNC-MM-LMR240-15M | 15 meters sealed cable with straight TNC/TNC male plug connectors and flexible LMR240 coaxial cable. |
