Quanta Extra computing unit is a printed circuit board and features a board to board connector as main interface for rapid integration and a remote IMU. The IMU is the Apogee-I remote IMU
Quanta Extra is an OEM product and is not intended to be used without being enclosed within a protective cover that will address all protection and safety requirements.
Specifications
| Item | Specification |
|---|
Dimensions | 72.5 x 83.5 x 50 mm (IMU) |
Weight | External IMU: 295 g |
Mounting Holes | 4x Ø 3.2 mm, clear holes for M3 screws for the PCB |
Origin of measurements
Because the Quanta Extra IMU integrates several MEMS accelerometers, it integrates a built-in size effect compensation and as a result a ‘virtual’ reference point has been chosen to define the Origin of Measurements Point.
The origin of measurements, is the point where the inertial frame, as defined by the accelerometers triad, intersect.
The Origin of Measurement Point is represented by the red target on the drawings below.

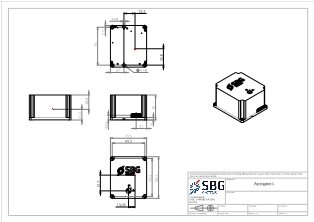

Mechanical Drawing
Note
The pin numbering may not be the same as the one used by the connector manufacturer. Please refer to SBG provided pin numbering (in drawings)
CAD Models (STEP file)
The Step file can be downloaded here: Apogee-L.STEP
