Overview

The Pulse-40 OEM is enclosed in in a rigid aluminum mechanical part, ensuring robust and repeatable integration into your system while keeping the product weight low.

The Pulse-40 OEM is not intended to be used outdoor, and Ingress protection should be assured at the integration level.

Mounting the Pulse-40

The Pulse-40 contains a smart set of holes that are partially threaded. This allows you to mount the IMU from from the top, using 2x M2 screws and external nuts.

Size and Weight

All dimensions are expressed in millimeters using the International System of Units (SI) conventions.

ParameterSpecification
Size30 x 28 x 13.3 mm
Weight19 g

The area directly beneath the Pulse-40 OEM shall remain free of exposed conductive elements. Any conductor located within this area shall be covered by an insulating layer providing protection against mechanical contact and electrical short circuits.

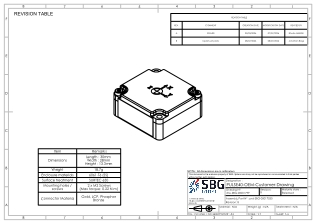

Mechanical Drawing

The following drawing contains all the mechanical specifications for the Pulse-40 OEM:

  • Product Overview & Key Mechanical Characteristics

  • Center of Measurement Location, sensor Reference Frame & Alignment Information

  • Mounting Interface Design & Recommendations

    • General interface design

    • Integration using the RS422 Interface Board sold by SBG Systems

    • Reference design for mechanical mounting

3D Files

This 3D file (STEP) has been designed to be easy to 3D Print.

STEP File: PULSE40-OEM-Customer-3D-File_prd-SBG-00017079_A.step

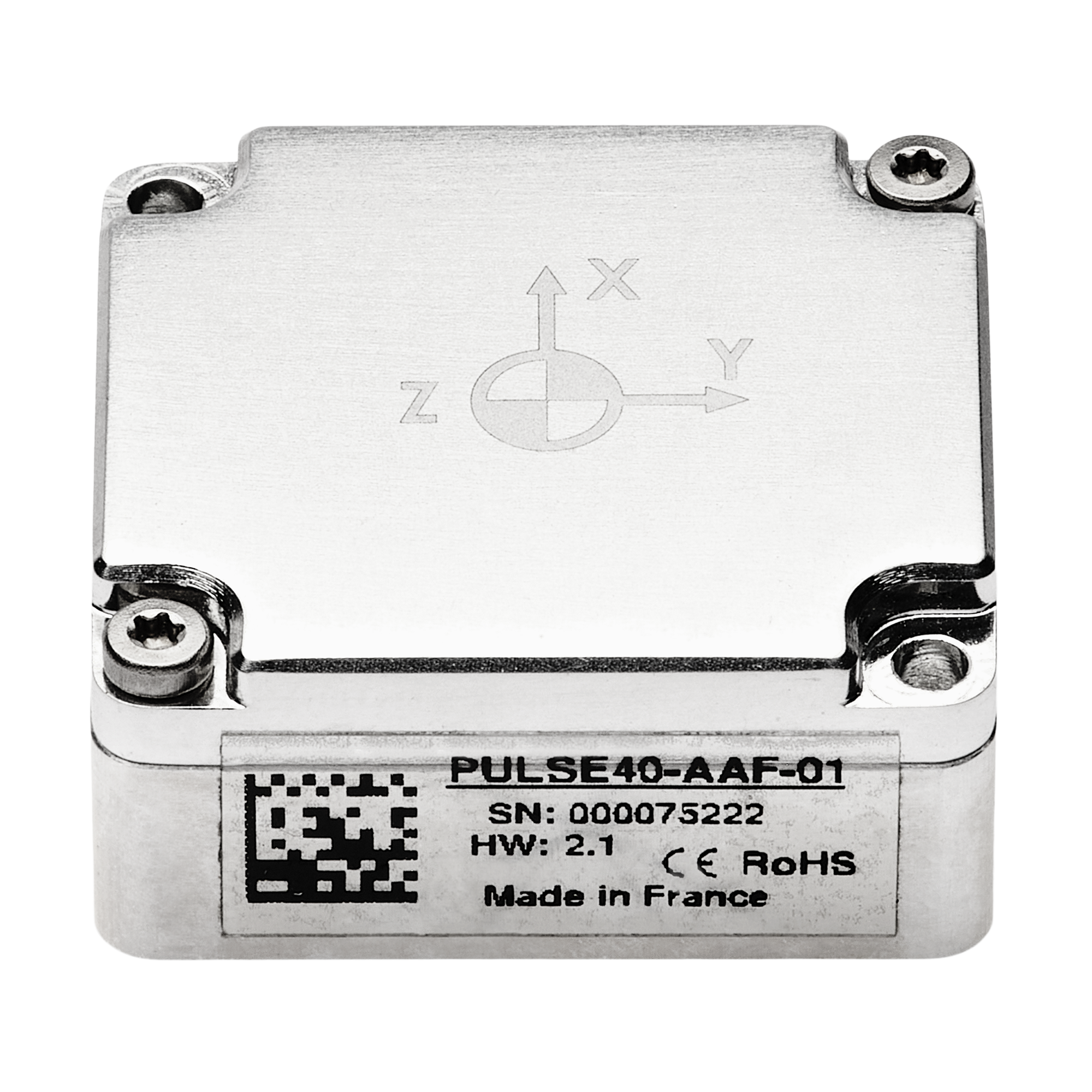

Label

SBG Systems manufacturing process is based on EN-9001 system with individual and full traceability of every component and operation. Each unit is identified by a unique serial number that can be used to trace all operations during the product lifetime such as manufacturing, calibration, tests and repairs.

In addition to a unique serial number, a product code is used to define exactly the device type, options, configuration. You can find on the side of the Pulse cover a laser printed label that hold all these identification information. This label also includes a data-matrix code that encodes the device unique serial number
