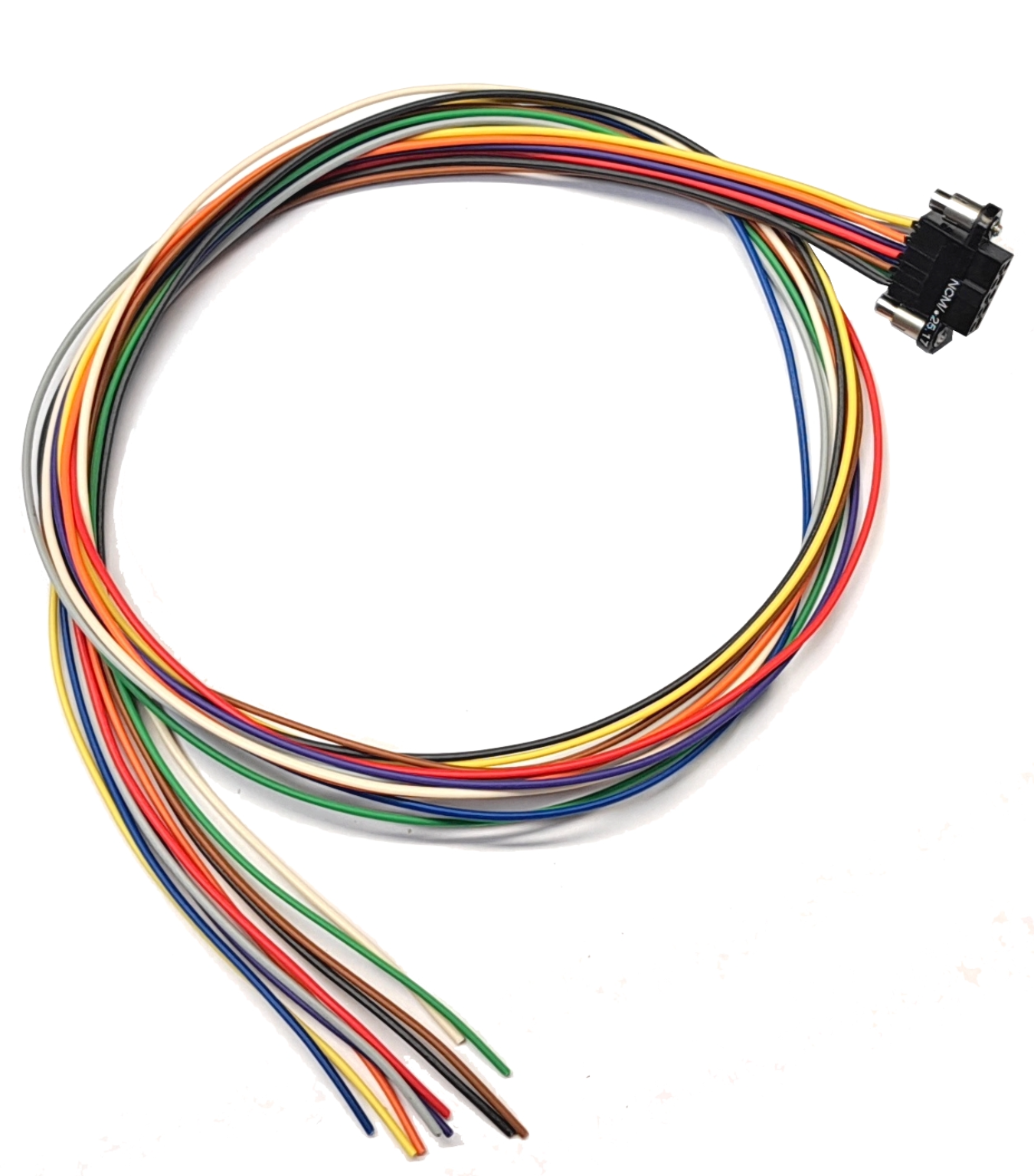

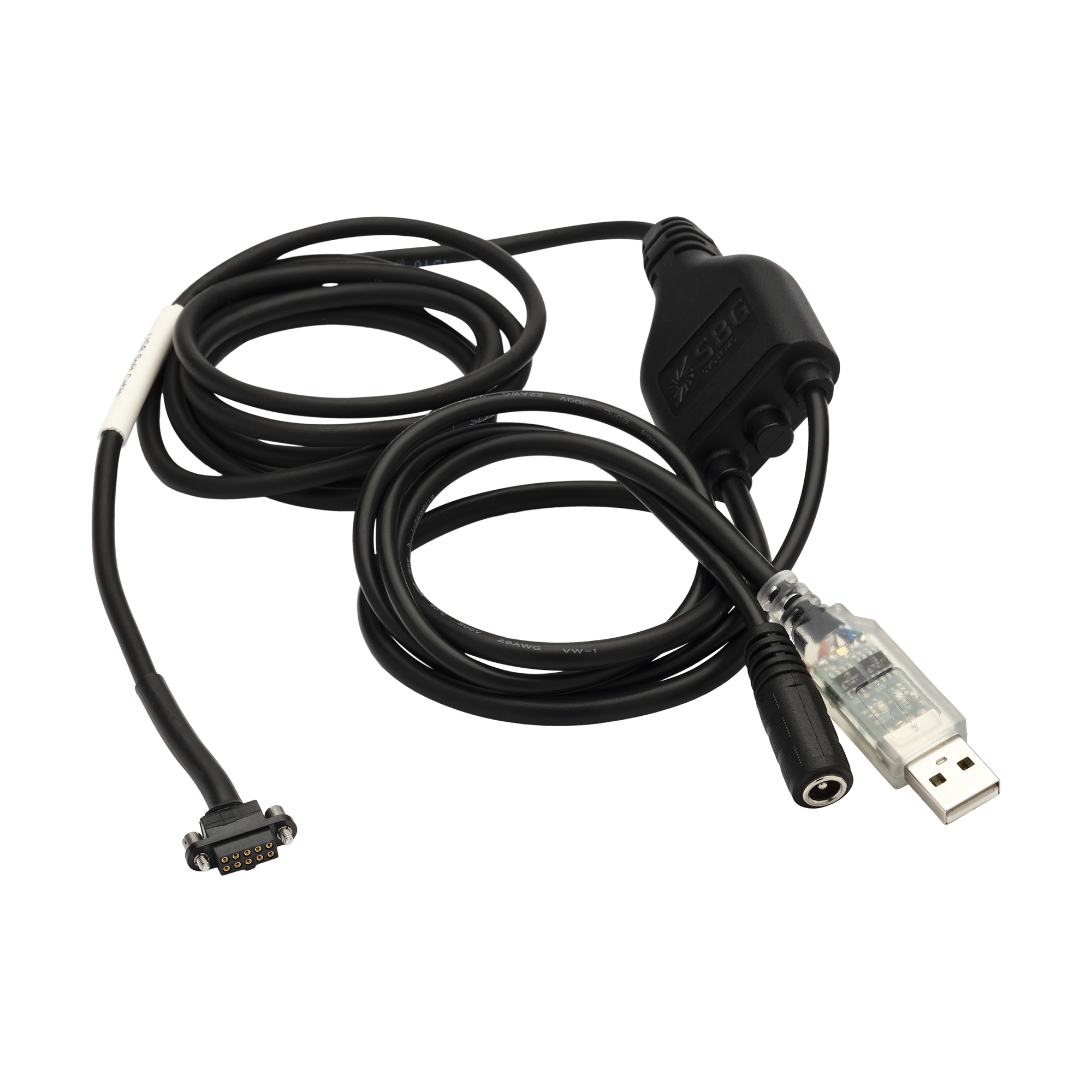

IMU Pulse-80 Box - User manual Current: Accessories PDF Download PDF Download page Accessories. Current page All pages Accessories We provide accessories to ease the use of our Pulse-80 IMU. Development kit - Pulse-80 BoxThis dev kit contains all the tools needed to start with the Pulse-80 Box.ComponentQuantityDescription100-4518: USB Split Cable1Cable to connect to the Pulse-80 box to a PC using USB.Required to configure the Pulse-80 and do a first bench acquisition.Needs a dedicated power supply.100-4485: Pulse Open Wire Cable 1Open-wire cable to connect the Pulse-80 to another systemWallplug (100-1136 CA-PSU-12V-1.5M)1Power supply to use with the USB Split cablePulse-80 Box Mounting screws (M3 - Length 55mm)4Screws to mount the Pulse-80 box to a mechanical interface Open-ended mating cable for Pulse-80 BoxedSBG Systems provides open-ended mating cables: 26AWG, 50cm long open-end cable.These cables can be used for easy integration of a Pulse-80 Boxed.Pin-out#Wire Color1Black2Brown3Red4Orange5Yellow6Green7Blue8Violet9Grey10White USB Split cableThe USB cable allows an easy connection to:The Pulse-80 Boxed, The Pulse-80 OEM when combined with the RS422 interface boardIt is needed for the first configuration of the Pulse-80.USB ConnectorUSB 2 type A connector.DC Barrel ConnectorContactSignalsTypeCenterVINPower Supply InputOuterGNDPower Supply ReturnProduct connector PinoutContactSignalsType1VINPower Supply Output2RS422_RX_NData Transmit Input Signal (- differential)3RS422_TX_NData Transmit Output Signal (- differential)4RS422_CTS_NClear To Send Input Signal (- diffrential), to be used for SYNC_OUT signal5-6GNDPower Supply Return7RS422_RX_PData Transmit Input Signal (+ differential)8RS422_TX_PData Transmit Output Signal (+ differential)9RS422_CTS_PClear To Send Input Signal (+ diffrential), to be used for SYNC_OUT signal10SGNDSignal ReferenceMechanical specsWeight: 115 g , +/- 5 gBending Radius 25 mm (non repetitive)Length ×
