We provide accessories to ease the use of our Pulse-80 OEM IMU.


Development kit - Pulse-80 OEM

This dev kit contains all the tools needed to start with the Pulse-80 OEM.

ComponentQuantityDescription
100-4491: RS422 interface board for Pulse-80 OEM1

Interface board allowing to connect the Pulse-80 in RS-422.

The interface board is mounted on top of the Pulse-80 OEM.

Note: The electrical specs of the interface board are strictly the same as the Pulse-80 box. Please refer to Pulse-80 box specifications if you need details.

100-4518: USB Split Cable

1

Cable to connect to the Pulse-80 box + its RS422 interface board to a PC using USB.

Required to configure the Pulse-80 and do a first bench acquisition.

Needs a dedicated power supply.

100-4485: Pulse Open Wire Cable 1Open-wire cable to connect the Pulse-80 to another system
100-4523: Pulse-80 OEM Micro interface board1

A micro interface board directly mountable on the connector of the Pulse-80 OEM to provide easier access to the pins:

  • either through a FFC ZIF connector (not provided)
  • or through individual solder pads
Wallplug (100-1136 CA-PSU-12V-1.5M)1Power supply to use with the USB Split cable
Pulse-80 Box Mounting screws (M3 - Length 40mm)4Screws to mount the Pulse-80 OEM to a mechanical interface
interface boards mounting screws (M1.6 - Length 5mm)6Screws to mount either interface boards (RS422 or micro interface) to the Pulse-80 OEM

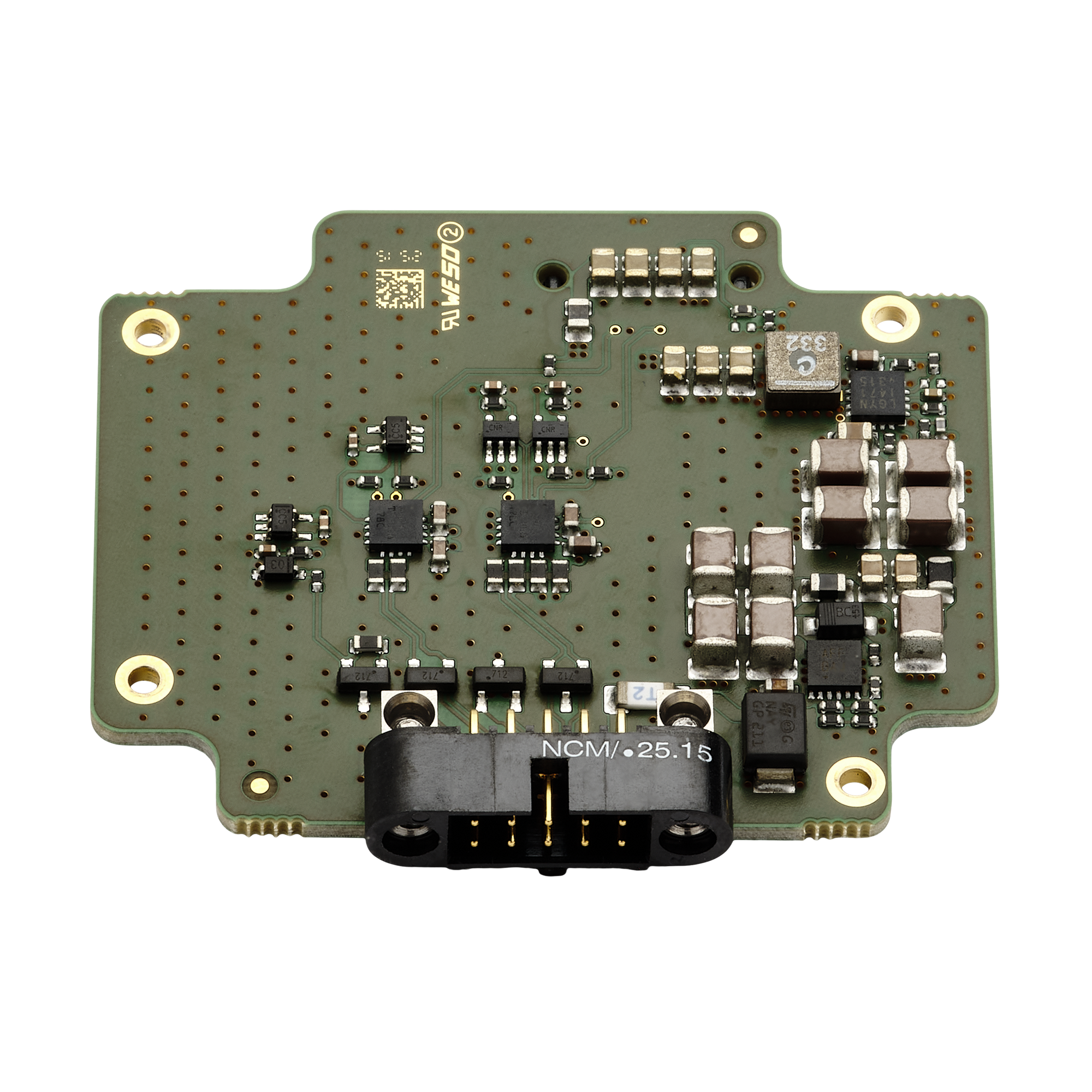

RS422 interface board for Pulse-80 OEM

This top mounted interface board provides:

  • a larger power supply range
  • conversion to RS422
  • an easy to use connector

For the specifications of the interface board, please refer to the Electrical and interface specification of the Pulse-80 Boxed.

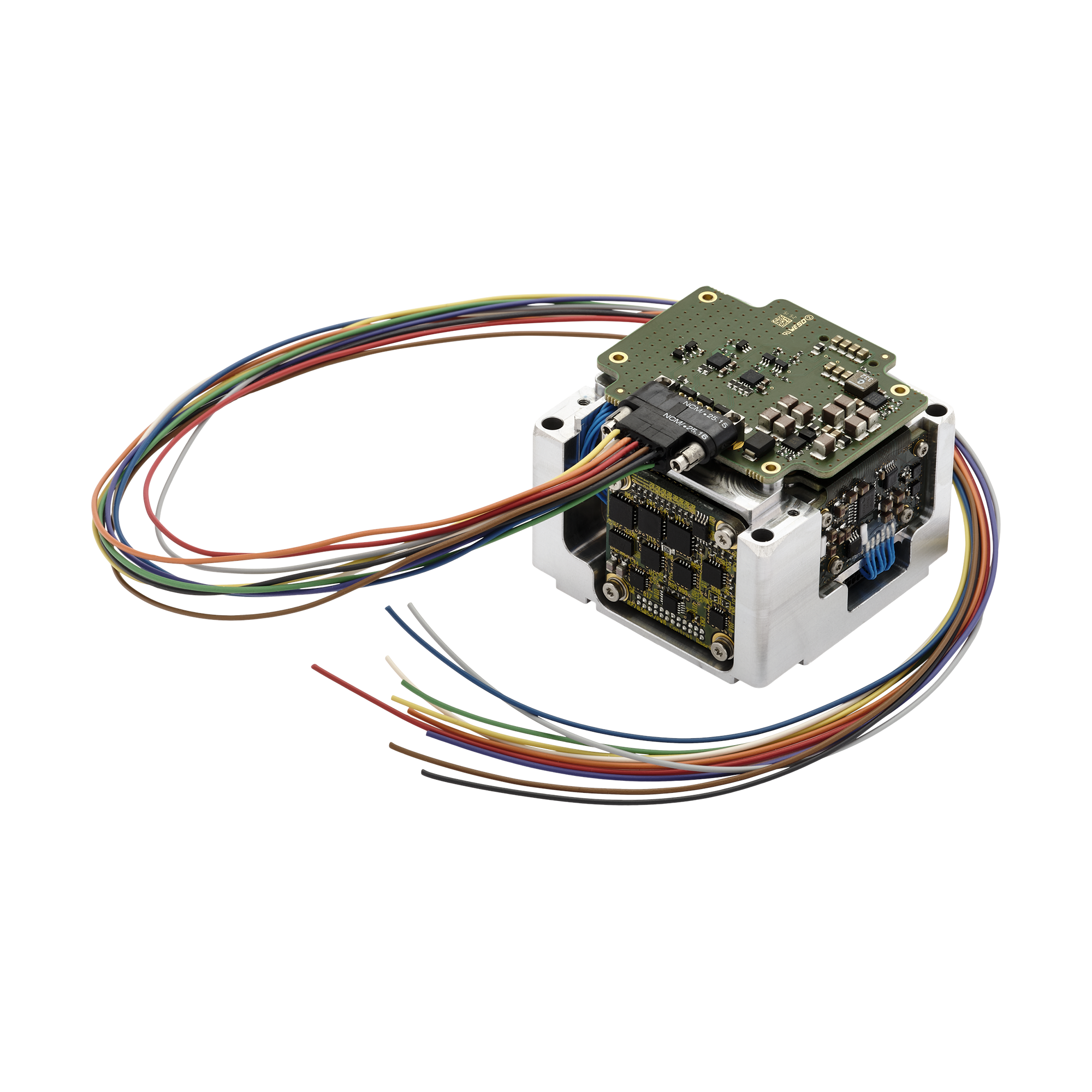

Open-ended mating cable

SBG Systems provides open-ended mating cables: 26AWG, 50cm long open-end cable.

These cables can be used for easy connection to a Pulse-80 OEM when used with the RS422 interface board.

Pin-out

#Wire Color

1

Black

2

Brown

3

Red

4

Orange
5Yellow

6

Green

7

Blue

8

Violet

9

Grey

10

White

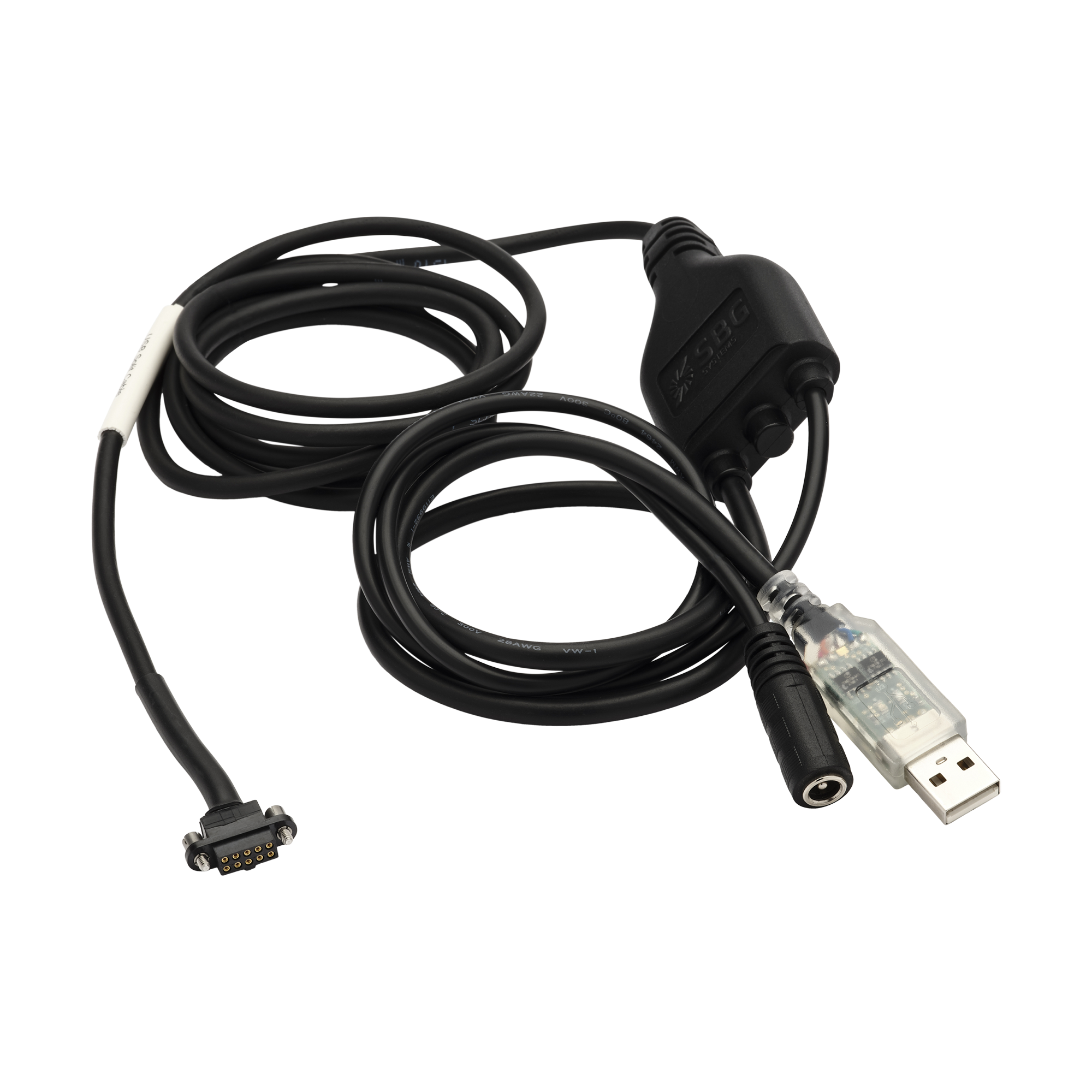

USB Split cable

The USB cable allows an easy connection to:

  • The Pulse-80 Boxed,
  • The Pulse-80 OEM when combined with the RS422 interface board

It is needed for the first configuration of the Pulse-80.

USB Connector

USB 2 type A connector.

DC Barrel Connector

ContactSignalsType
CenterVINPower Supply Input
OuterGNDPower Supply Return

Product connector Pinout

ContactSignalsType
1VINPower Supply Output
2RS422_RX_NData Transmit Input Signal (- differential)
3RS422_TX_NData Transmit Output Signal (- differential)
4RS422_CTS_NClear To Send Input Signal (- diffrential), to be used for SYNC_OUT signal
5-
6GNDPower Supply Return
7RS422_RX_PData Transmit Input Signal (+ differential)
8RS422_TX_PData Transmit Output Signal (+ differential)
9RS422_CTS_PClear To Send Input Signal (+ diffrential), to be used for SYNC_OUT signal
10SGNDSignal Reference

Mechanical specs

  • Weight: 115 g , +/- 5 g
  • Bending Radius 25 mm (non repetitive)
  • Length

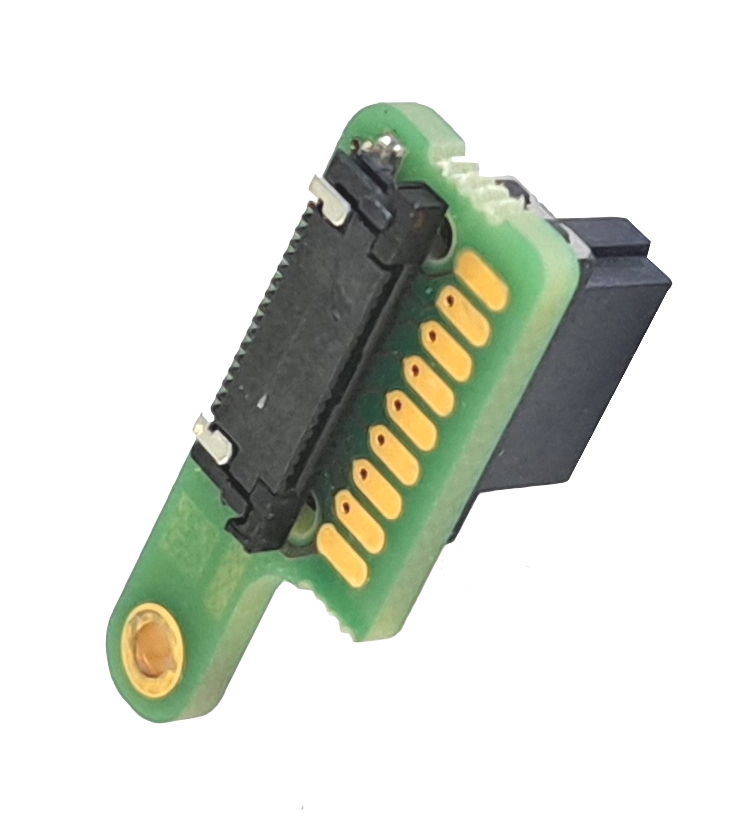

Pulse OEM - Micro interface board

This small board can be used to easily connect to a Pulse-80 OEM without having to develop a PCB flex interface.

It provides:

  • Solder pin pads: for easy soldering of wires
  • FPV/FFV ZIF connector: to use in combination with a FFV/FPV cable

Soldered pin pads - Pinout

This pinout is for the soldered pin pads:
  • 1 : VDD
  • 2 : GND
  • 3 : EN
  • 4 : UART_Tx
  • 5 : UART_Rx
  • 6 : SYNC_DIR
  • 7 : SYNC_IN
  • 8 : SYNC_OUT
  • 9 : Tx_EN

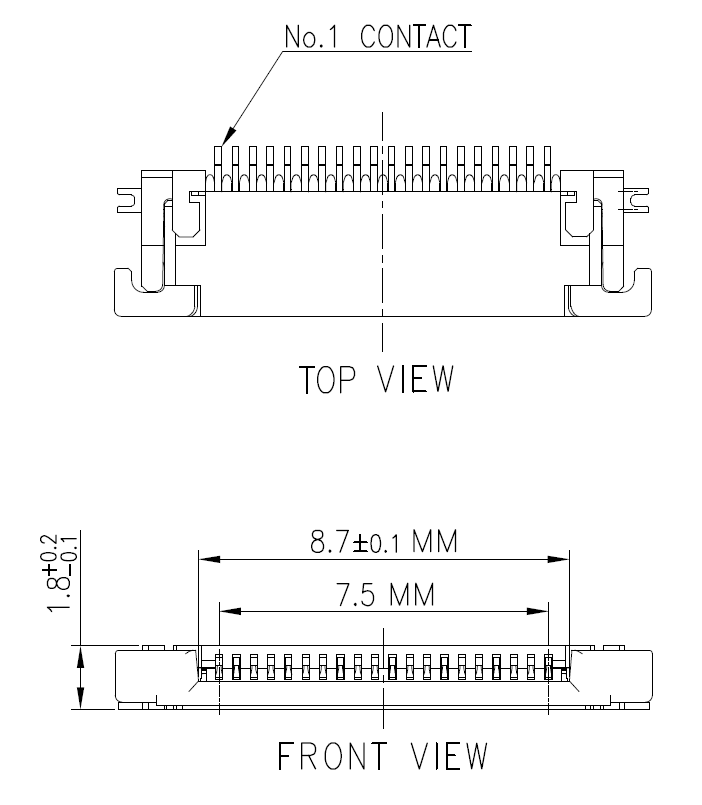

ZIF connector - Pinout

The micro interface board also embeds a ZIF connector.

The reference of the connector is :

This pinout is applicable to the ZIF connector:

  • 1, 2 : VDD
  • 3, 4  : GND
  • 5 : EN
  • 6 : Reserved
  • 7 : UART_Tx
  • 8 : UART_Rx
  • 9 : Reserved
  • 10 : Reserved
  • 11 : SYNC_DIR
  • 12 : SYNC_IN
  • 13 : SYNC_OUT
  • 14 : Tx_EN
  • 15 : Reserved
  • 16 : Reserved

For more details on the connector, please refer to the drawing in the Mechanical specifications.
