This release brings several new features, improvements and bug fixes for the 5.x High Performance INS firmware. Highlights and detailed changelog can be found below.

This update is recommended to all EKINOX, APOGEE, NAVSIGHT and QUANTA users to get the best performance and experience.

Please read the page 5.1.149-stable to get all details about new features and improvements in the 5.x series.

You can download and install this new firmware release for free from the link below:

Download Firmware

Upgrading from 4.0 and older

If you are upgrading from a firmware 4.0 or older, you should first install the failsafe firmware before you can install the correct firmware type package.

Please refer to the dedicated Update Procedure for a step by step guide.

Important Highlight

Live Map Tab in the Web Interface

A convenient new way to monitor system position and heading, complementing the existing numeric values. The map even works offline, displaying a low-resolution view when no internet is available at the browser side.

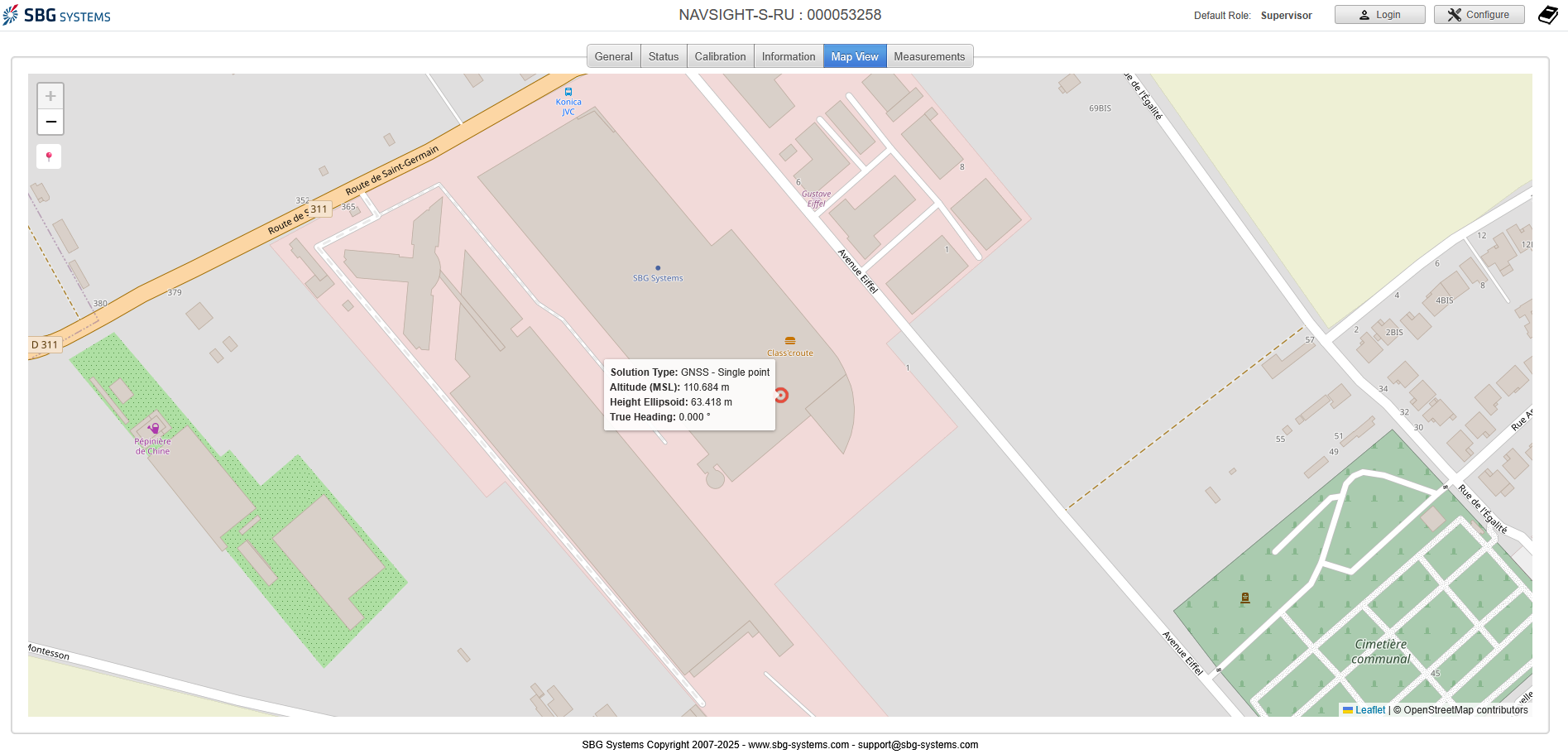

new map view starting from firmware 5.5.3789-stable

Support for Galileo OSNMA Anti-Spoofing

Following the official end-of-test phase announcement from the European GNSS Center (July 24th, 2025), SBG Systems is now providing official OSNMA support.
Previously available as an experimental feature, it is now supported on the latest Hardware versions of the following internal GNSS-based products : Ekinox Micro, Ekinox-D, Apogee-D, Navsight-S, Navsight OEM, Quanta Micro, Quanta Plus, and Quanta Extra.
Note: This feature is not available on products outside this list or on external GNSS receiver (-E) units.

Advanced GNSS Configuration Options

New web UI and API controls give users fine-tuned management of constellations and other internal GNSS receiver settings—perfect for specialized or corner-case applications.

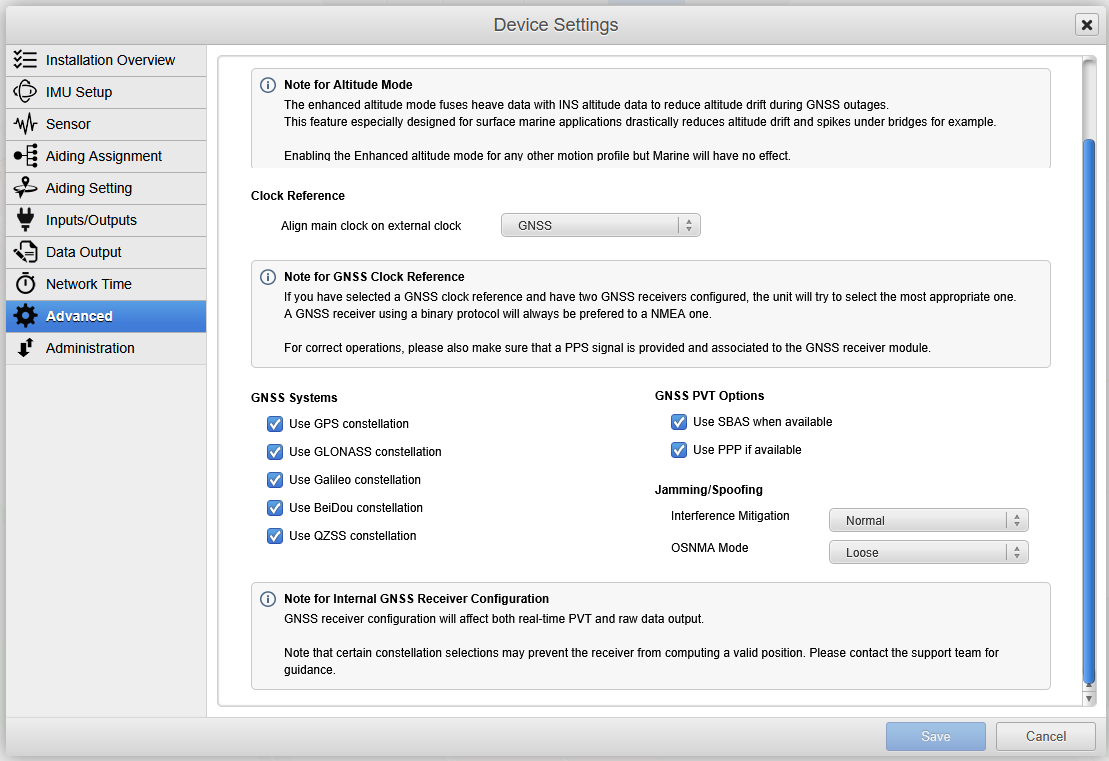

new advanced GNSS settings starting from firmware 5.5.3789-stable

Real-Time Vibration FFT Monitoring

(Pulse-40 IMU based products only)
A unique SBG Systems innovation: while still outputting 200 Hz raw IMU data, the system processes higher-rate IMU data internally to deliver a real-time broader spectral analysis (up to 2kHz). This provides invaluable insight into vibration exposure, making it easier to diagnose integration challenges and optimize installation of the SBG Systems units into challenging customers setups.
Currently available on Ekinox Micro, Quanta Micro, Quanta Plus, and Navsight OEM products, with future expansion planned.

Generic 3D Velocity Aiding Input

In addition to odometer and DVL inputs, users can now provide velocity data from any source—such as SLAM, Laser or radar based velocimeters.
Today, this input is used as an odometer, but future firmware updates will unlock full axis-based performance enhancements.

Real-Time Control of Aiding Input Rejection

Gives integrators precise control in complex setups where aiding sources are known to have unreliable phases.

Support for the New Pulse-80 IMU

Extending compatibility to our next generation high-performance IMU.

Additional Notes

Firmware Type

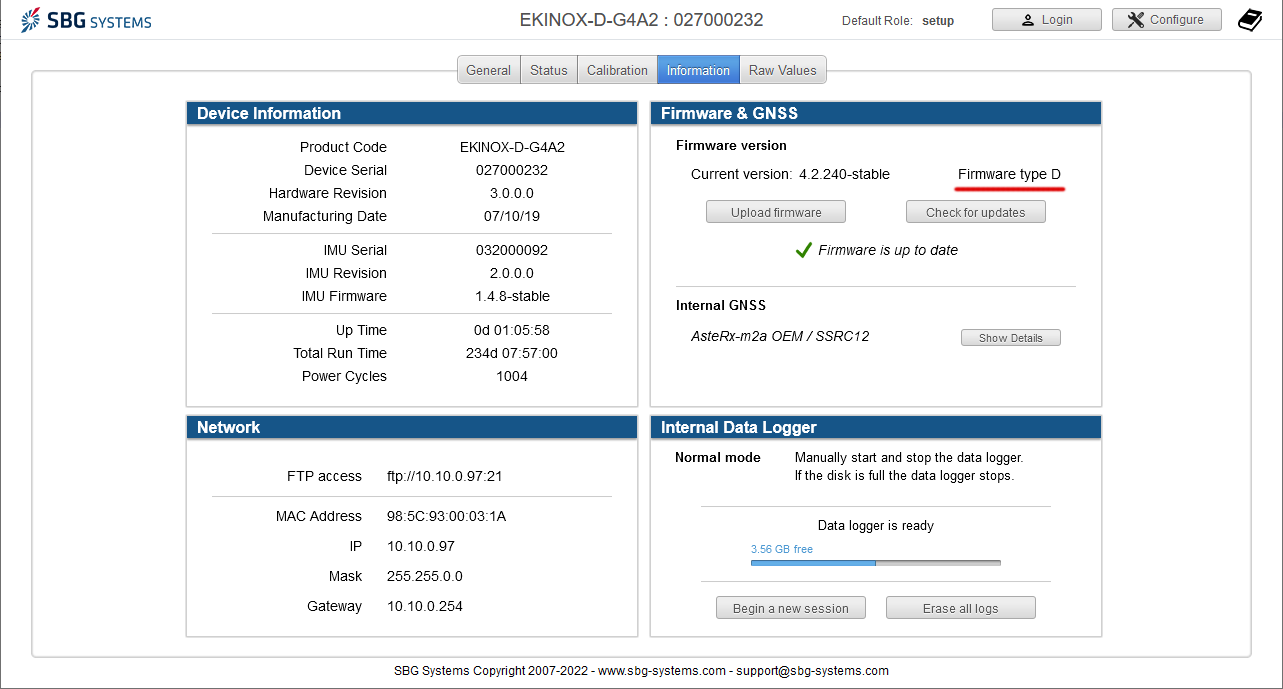

Starting with firmware 4.2.x,a firmware type has been introduced. The firmware type let you know which firmware should be installed for your hardware. Please read the Update Procedure to get more details about firmware type and step-by-step instructions to update your device firmware.

Release 5.5.3789-stable

Bug Fixes

  • EKIFW-2805 - Fix spurious interference detection on Ekinox micro and Quanta Micro
  • EKIFW-2800 - Fix marine harsh survey regression that reduced the performance under challenging GNSS conditions
  • EKIFW-2775 - Fix data output triggered on Sync for some NMEA frames
  • EKIFW-2774 - Fix default motion profile migration handling
  • EKIFW-2754 - Fix GNSS receiver initialization for EKINOX2-N
  • EKIFW-2699 - Fix error message flooding when an inconsistent GPHDT message is being sent
  • EKIFW-2694 - Web: Fix preset displayed to match with the selected logs

New Feature

  • EKIFW-2778 - Implement GSA NMEA frame
  • EKIFW-2776 - Add GSA, ZDA, GST frames from direct GNSS mode
  • EKIFW-2748 - Add support for real time FFT and vibration monitoring logging from IMU
  • EKIFW-2702 - ublox: Add support for new OSNMA log and configuration
  • EKIFW-2692 - Web: Add a map view to display the 2D trajectory and altitude
  • EKIFW-2690 - Add advanced GNSS configuration options, including the ability to disable/enable specific constellations
  • EKIFW-2687 - Add support for new PULSE-80 IMU for Navsight and Quanta products
  • EKIFW-2664 - Add generic 3D velocity aiding input (used as an odometer for now)
  • EKIFW-2578 - Allow users to activate or deactivate Marinestar services
  • EKIFW-2556 - Add support for real time aiding rejection commands
  • EKIFW-1310 - Add INDYN NMEA like message output for marine applications

Improvement

  • EKIFW-2782 - Increase maximum attitude, velocity and position validity thresholds
  • EKIFW-2770 - Add SBF message "RF Status" (ID 4092) to the raw GNSS output for Septentrio GNSS receiver
  • EKIFW-2769 - Settings: avoid resetting the internal GNSS receiver when changing rejections
  • EKIFW-2768 - Lever arm calibration module: Prevent EKF reset when applying estimated lever arms
  • EKIFW-2764 - Web: Improved messages order displayed to the user
  • EKIFW-2743 - Enable OSNMA feature supported on Septentrio based products
  • EKIFW-2733 - Support import of settings from Data Logger format
  • EKIFW-2728 - Update IMU firmware versions to support FFT
  • EKIFW-2715 - Improved Quanta Plus, Micro and Ekinox Micro resilience to vibrations
  • EKIFW-2703 - Update septentrio AsteRx m3 Pro+ and Fg GNSS firmwares to version 4.14.10
  • EKIFW-2700 - Web: Improved data refresh rate
  • EKIFW-2673 - Datalogger: Update the "Start Output after UTC valid" behavior to wait for steered clock
  • EKIFW-2644 - Settings: Add a new option for api/v1/settings/save to reboot following the save
