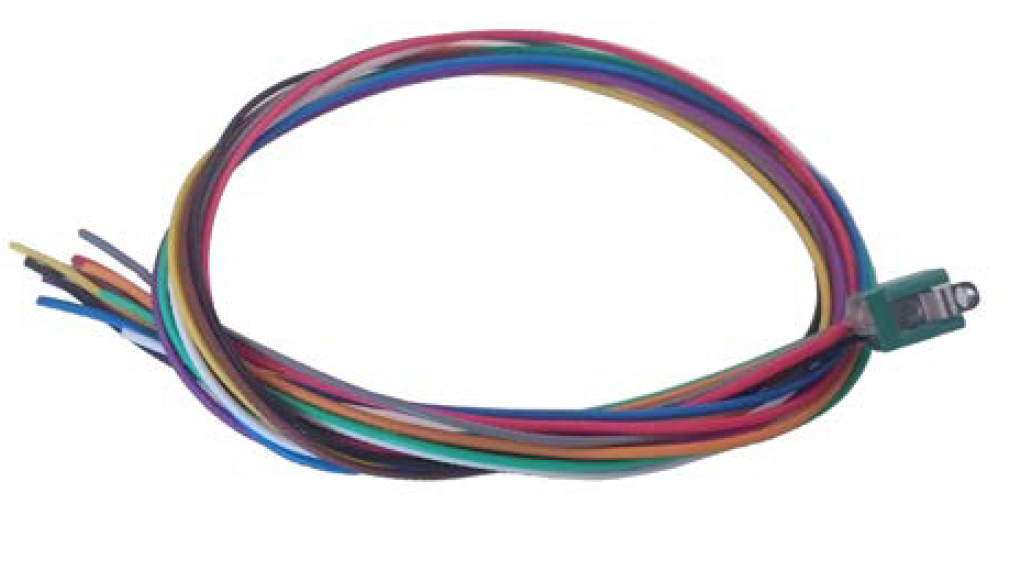

IMU Pulse-20 User Manual Current: Accessories PDF Download PDF Download page Accessories. Current page All pages Accessories Development kitThe Development Kit is an essential accessories that should be used along with the Pulse-20 series. The Development kit provides the following items:Small sized transport caseAn evaluation board to quickly test and configure the Ellipse micro sensorRS-232 / RS-422 capableDirect access to all inputs/outputs CA-ELI-M-OW-0.25MThis open ended cable provides an easy access to all Harwin Gecko connector on the Pulse-20. The cable is 25cm long and has following pin-out:#ColorSignal (RS422 configuration)Signal (RS232 configuration)1BlackGNDGND2WhitePORT A Rx+PORT A Rx3YellowPORT A Tx+PORT E TX4BrownSYNC ASYNC A5BlueCAN HCAN H6RedVINVIN7GreyPORT A Rx-PORT E RX8OrangePORT A Tx-PORT A Tx9GreenSYNC BSYNC B10PurpleCAN LCAN LSpecifications:Side 1: Harwin Gecko Side 2: Wire-endedLength: 25cmBending radius: non specified (individual wire cable) ×
