Recommended electrical specifications from -40°C to 85°C.

ItemMinTypicalMaxUnitConditions

Power supply






Input voltage

4.0

5.0 - 12

15

V


Power consumption


0.40


W


RS-232 Receiver




Input range

-15
+15V

Low level threshold

0.6

1.2


V


High level threshold

-

1.5

2.0

V


Input resistance

3

5

7


RS-422 Receiver






Input differential threshold-200-125-50mVCommon mode Voltage [-7V; 12V]
Input hysteresis
25
mV
Input resistance100120155

RS-422 Receiver






Output range+/-5+/-5.5
V
RS-422 transmitters




Differential output voltage2

VRL=100ohm
Common mode output voltage

3V
Sync In pins




Input range0
3.3V
Low level threshold

1V
High level threshold2.3

V
Sync Out pins




High Level Output voltage2.6

VILoad < 6mA
Low Level Output voltage

0.4VILoad < 6mA
CAN bus




Recessive Bus Voltage1.451.952.45V
CAN H Output Voltage2.152.93.3Vdominant
CAN L Output Voltage0.50.91.65Vdominant
Differential input voltage0.5
0.9VCANH, CANL

Main Connector

SBG Systems has selected a specific connector designed for high reliability. The main connector provides access to all Pulse-20 features through a modular way. It provides:

  • The main serial port (PORT A) that supports full-duplex communication. It operates in RS-
  • One CAN 2.0A/B connection that supports up to 1 Mbit/s data rate used to output data

The table below give manufacturer and model number of the recommended mating connector.

Connectors

Manufacturer

Manufacturer P/N

Distributor

Description

Pulse-20 receptacle connector

HARWIN

G125-FS11005L0P


10 ways Harwin Gecko connector

Mating Connector - Cable

HARWIN

G125-3041096L4


Cable mounted connector - doesn't include contacts

Mating cablesHARWIN

G125-MC21005L4-0150L


150cm cable preassembled with mating connector - open ended
Mating cablesHARWIN

G125-MC21005L0-0150M


150cm cable preassembled with mating connector - dual ended
Mating cablesSBG SystemsCA-ELI-M-OW-0.25M
25 cm cables preassembled with mating connector - sold directly by SBG Systems for shorter lead times
Mating Connector - SMTHARWIN

G125-MS11005L0P



Mating Connector - Through HolesHARWIN

G125-MV11005L0P

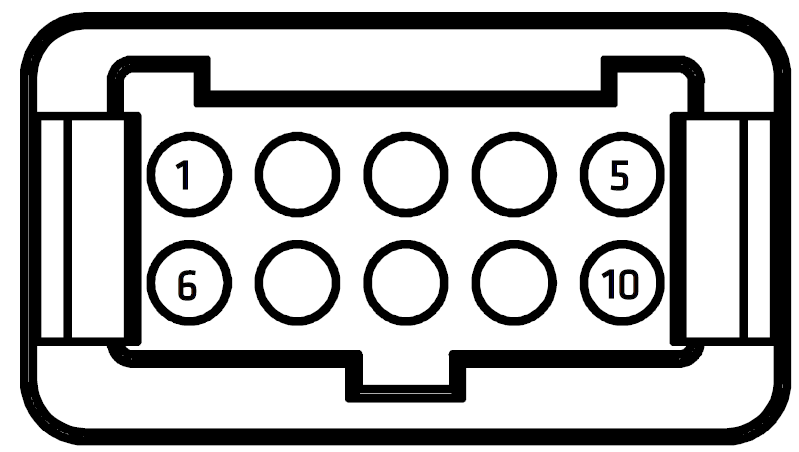

Connector pin assignment

Pin#NameType (input/output)Description

1

GND

Ground return

Ground return signal

2

PORT A Rx+

Input

Port A RS-422 Rx+ line

3

PORT A Tx+

Output

Port A RS-422 Tx+ line

4

SYNC A

-

Synchronization signal A. May be used as SYNC IN A or SYNC OUT A

5

CAN H

Input/Output

CAN High

6

VIN

Power Input

Power supply Input

7

PORT A RX-

Input

Port A RS-422 Rx- line

8

PORT A TX-

Output

Port A RS-422 Tx- line

9

SYNC B

-

Synchronization signal B. May be used as SYNC IN B, SYNC OUT B

10

CAN L

Input/Output

CAN Low
