Unused features

The dev board has been developed to also support other sensors than the Pulse-20. It contains multiple features that are not usable with the Pulse-20 and are not documented.

The dev board also mentions Port E due to compatibility with legacy products. The Port E on the dev board is the same as the Port B in the Pulse-20.

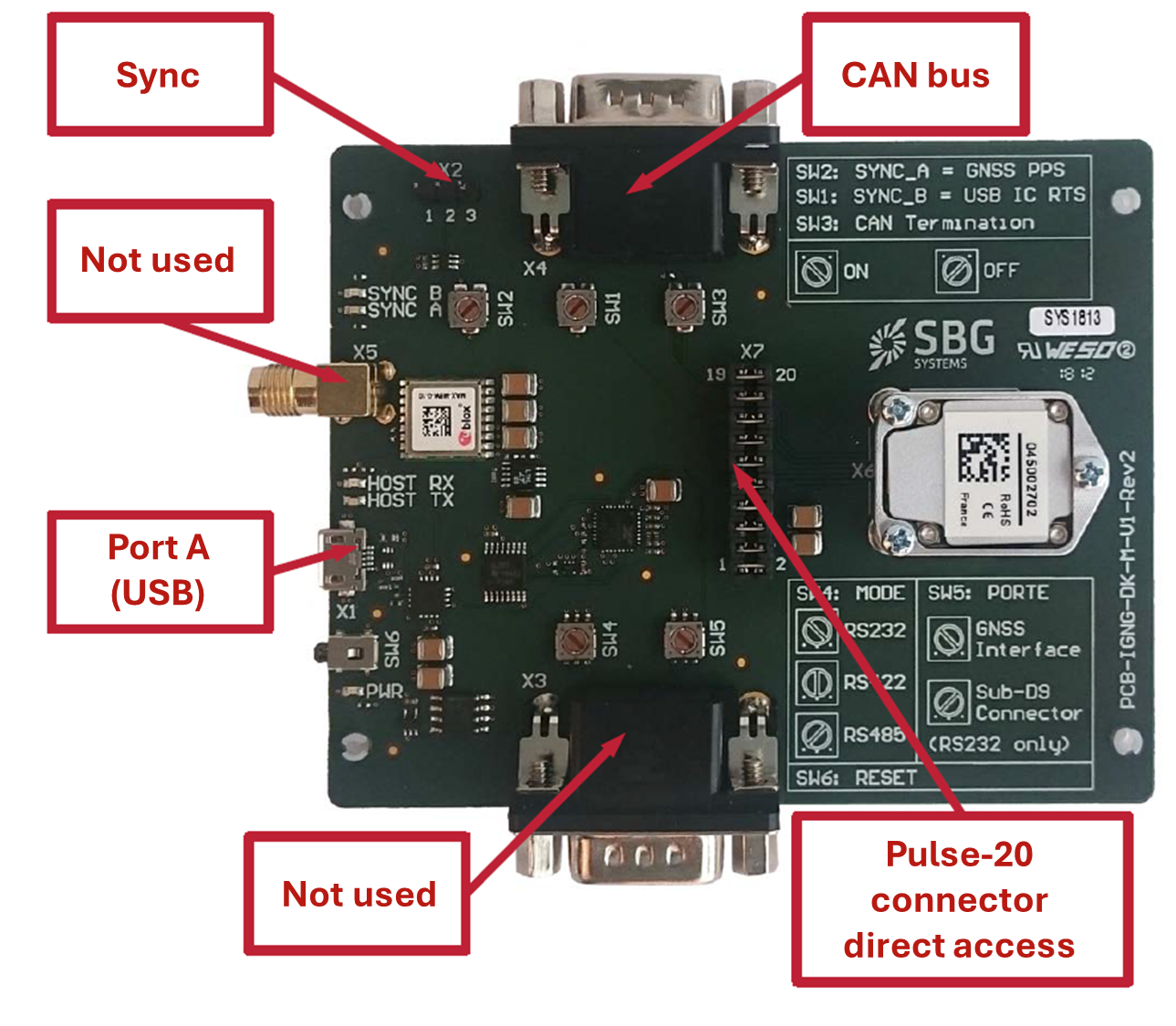

Board overview

The evaluation board has been designed to test most of the Pulse-20 (or the Ellipse Micro) functions and also to configure the device without the need to develop specific cabling.

Following connectors provide easy access to the board functionalities:

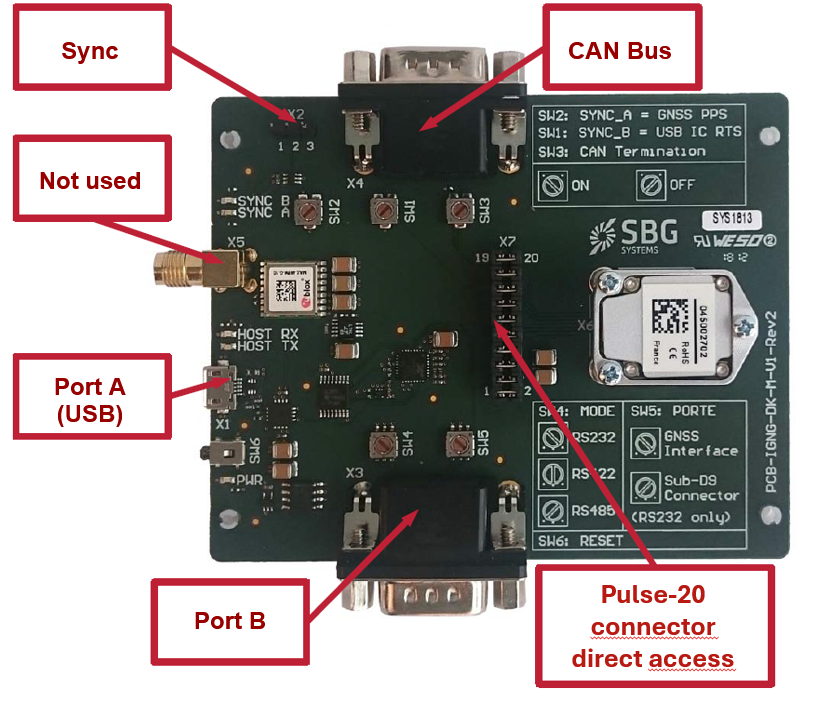

Pulse-20-DevBoard

Board configuration Switches

The dev board contains multiple switches. Ensure your port configuration matches the configuration of your Pulse-20.

Serial mode (RS422 or RS232)

SW4 and SW5 should be combined together to enable following functions:

Ports configurationSW4SW5
Pulse-20 RS422

Pulse-20 RS232



Serial variants of the Pulse-20

The communication mode (RS232 / RS422) of the Pulse-20 is defined based on the variant ordered. Make sure the configuration of the dev board matches the Pulse-20 you've purchased.

CAN bus

Ports configurationSW3
120 Ohm termination enabled

No CAN bus termination

Sync configuration

Ports configurationSW2
SYNC A direct access through X2

Other switches

Ports configurationSW1
Always configure SW1 as follows
