Cables

SBG Systems provides various mating cables to use with the Stellar-40.

Split Cables

Cable Stellar - Split Main - 0.5m

This 0.5 meter split cable provides easy access to the main features of Stellar-40 from the main port:

• Barrel Jack - female : DC Power input
• RJ45 - female: Ethernet connection
• First DB9 - male
  • RS232 in/out (port A)
  • Synchronization Output "Serial level"
• Second DB9 - male
  • 2x Synchronization input (A, B), or Odometer input

ETHERNET pinout

PORTA + SYNC OUT DB9 plug pinout

SYNC IN A/B DB9 plug pinout

DC Power input jack pinout

Cable Stellar - Split Aux- 0.5m

This 0.5 meter split cable provides easy access to the Auxiliary port features, through SMA, and DB-9 plugs.

• SMA Coax : Synchronization Output "TTL Level"
• First DB9 - male: CAN output
• Second DB9 - male:
  • 2x RS232 in/out (port C + port D) or 1x RS422 in/out port C

  • Synchronization Input

    • Input (C)

• Third DB9 - male:

  • RS232/RS422 in /out (Port B)

  • Synchronization Input (D)

CAN DB9 Pinout

PORT C/D + SYNC IN C DB 9 pinout

PORT B + SYNC IN D Pinout

SYNC OUT B

Open ended cables

Cable Stellar - Open wire 1.8m | common to MAIN and AUX interfaces

This cable has been specifically designed for harsh environments and provides access to the Stellar-40 main and aux connector. It offers all the features mentioned on the Interface specification page.The cable has the following specs:

• 1x Micro-D 15 Pos Male
• 1x open end
• Outer Braid Shielding, connected to Micro-D 15 connector chassis
• FTP Shielded 100Ω twisted AWG28 pairs for Ethernet link
• AWG28 gauge for other digital I/O wires
• AWG22 gauge for Power wires
• 1.8 meters long.

Cable pinout

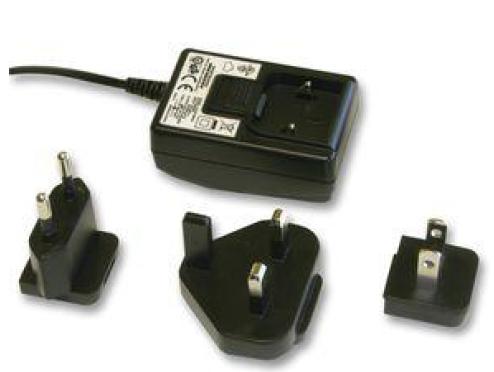

CA-PSU-12V-1.5M

This 1.5 meters long AC/DC international power supply can be used to provide power to a Stellar-40 sensor from an 110/220V AC power plug.

It is compatible with the Split cables

It supports US, UK and Europe standards and includes a standard DC 2.1mm barrel plug. The output voltage is 12V.
