External Magnetometer Integration

This article aims to guide users on the installation and configuration of external magnetometers for various applications. It focuses on the integration of magnetometers with sbgECom data.

For this example, we are using an Ellipse Micro as an external magnetometer.

You can learn more about magnetometers here.

Magnetometer Installation

The Ellipse is capable of receiving data from an external magnetometer to provide a heading, when a GNSS heading is not available.

The magnetometer should be installed as far away as possible from any magnetic source.

Ensure the Ellipse and the magnetometer are mounted rigidly on the same plane.

The magnetometer should have a right-handed reference frame. If you need to configure the orientation of the magnetometer in the Ellipse, this can be done in the software configuration below.

Electrical Installation

The Ellipse supports magnetometers with a transmit signal, to allow for calibration and to receive data from the magnetometer.

Typically the magnetometers consist of SDA or SDO pinouts for serial data.

If you're using a magnetometer with RS232 pinouts, you can just find the transmit and ground pins.

These pins can be used to connect to the input connection on the Ellipse. You can connect them accordingly by referring to the colour of the cable for the Main / Aux port on the Ellipse.

You can find this information here.

Software Configuration

For this instance, we are using the Yellow wire and black wire (Port C RS232 RX) on the Aux connector as the connection to the Ellipse.

Data going into the Ellipse must be in sbgECom format (SBG_ECOM_LOG_MAG (04)) described in our firmware manual.

Aiding Assignment

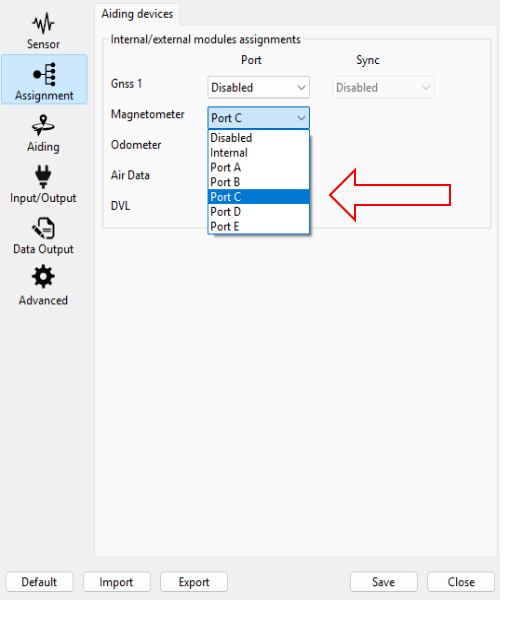

You need to select the input port you wish to connect the magnetometer to (Port C in this instance).

Input/Output

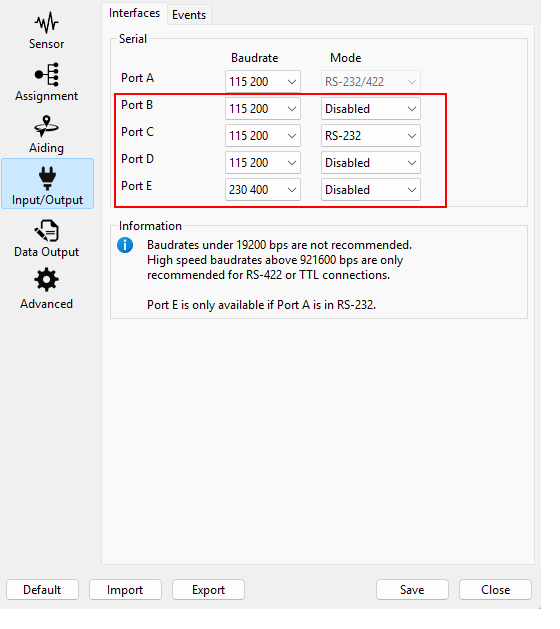

Ensure the correct baud rate and mode is selected for the corresponding serial port (In this instance we are using Port C with a baud rate of 115200 and using RS232).

Aiding

Misalignment

If the axis of the magnetometer cannot be aligned with the reference frame of the vehicle, you must enter the misalignment for the rough misalignment and the fine misalignment with 2°.

This is done using using the Configuration API (sbgInsRestApi). A simple way to use this API on a Windows/Linux/Mac OS X computer is to use the command line tool sbgEcomApi.exe, provided on GitHub, via port A.

sbgEComApi.exe -s <COM> -r <baudrate> /api/v1/settings/aiding/magnetometer/alignment/rough -p -b [\"backward\",\"left\"]
sbgEComApi.exe -s <COM> -r <baudrate> /api/v1/settings/aiding/magnetometer/alignment/fine -p -b [1,2,3]

As above, this can be done using the API command below for example.

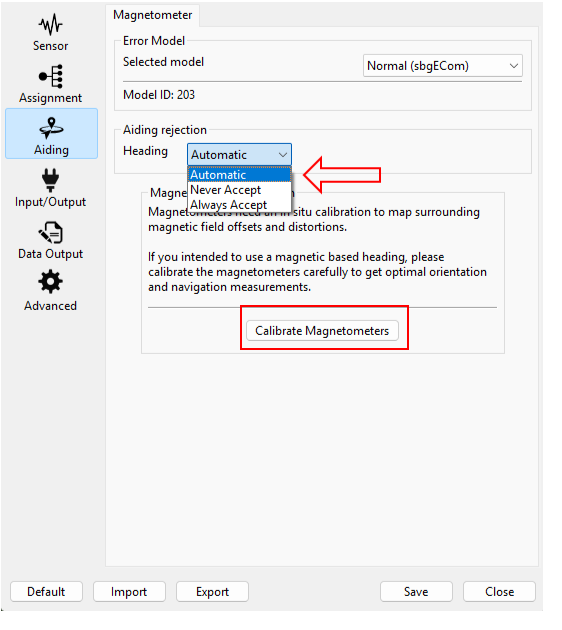

Rejection Settings

Ensure the correct aiding rejection is selected (By default it will be Automatic).

• Automatic - The EKF automatically decides if the heading provided by the magnetometer is sufficiently accurate to be used in the solution.
• Never Accept - The EKF rejects all heading data from the magnetometer, will not be used in the solution.
• Always Accept - The EKF always uses the heading provided by the magnetometer in its solution.

As above, this can be done using the API command below for example.

sbgEComApi.exe -s <COM> -r <baudrate> /api/v1/settings/aiding/magnetometer/useMagData p -b \"auto\"

Calibrate Magnetometers

Here you can also calibrate the magnetometer with the movement of your Ellipse. Please check further down in this article for more information.

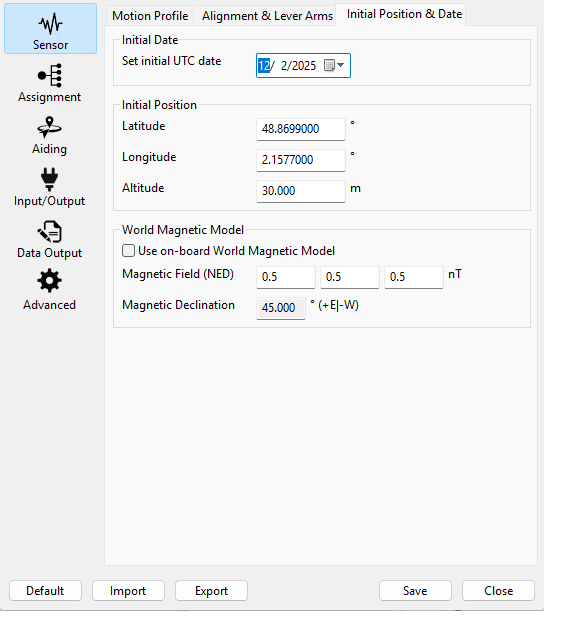

Initial Position and Date

Configuring the initial position and date allows to automatically compensate the magnetic declination even before receiving a fix from the GNSS (if magnetometers are used) in order to output a true heading instead of a magnetic heading. Alternatively, the magnetic declination can be manually entered.

More details on Sensor configuration chapter Magnetometer-related parameters

Data Checking

Data Output

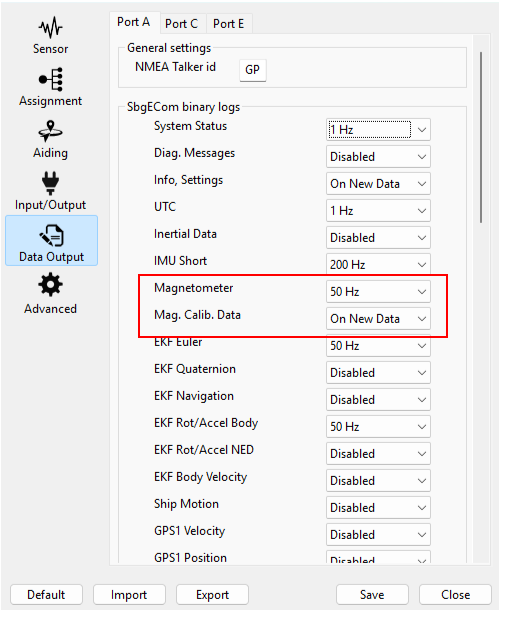

To check that the magnetometer is connected correctly and the data can be read, you will have to enable the Magnetometer message.

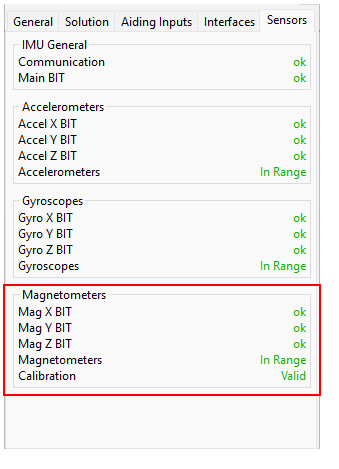

To ensure the magnetometer is connected and working as intended. You can check for the sensor’s status under the sensor tab in sbgCenter.

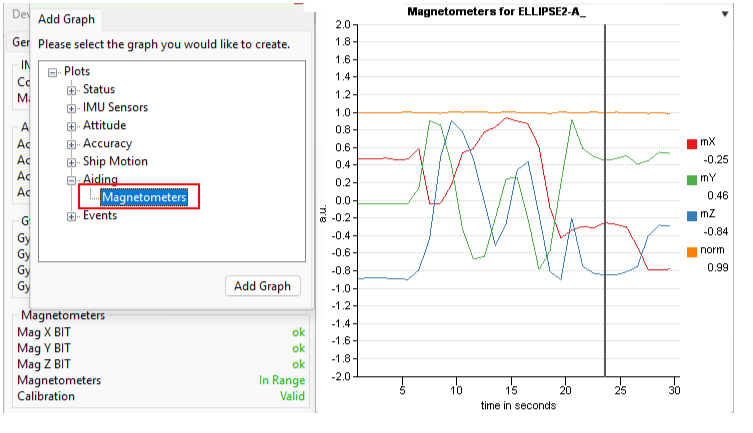

The magnetometer reading can be observed by opening a new graph.

Magnetometer Calibration

Using the sbgCenter

You can check this guide on performing a magnetometer calibration using the sbgCenter.

Using the Rest API

It is possible to configure the Ellipse with the Configuration API (sbgInsRestApi). A simple way to use this API on a Windows/Linux/Mac OS X computer is to use the command line tool sbgEcomApi.exe, provided on GitHub.

You can calibrate the magnetometers using the Rest API by using a few commands. The sbgInsRestApi documentation will have all the commands available. The syntax below is for the Windows command line interface, the syntax might change when using different operating systems or command line interfaces.

Starting a magnetic calibration

The Calibration Start command will allow you to start a calibration. Here we'll do a 3D calibration.

sbgEComApi.exe -s <COM> -r <baudrate> /api/v1/magnetometer/calibration/start -p -b "{\"mode\":\"3d\"}"

You will get the following response which means the calibration has started.

{"title":"request successful"}

Computing and returning the results of a magnetic calibration

The Calibration Get command will allow you to get the results from the ongoing calibration after having calibrated the system.

sbgEComApi.exe -s <COM> -r <baudrate> /api/v1/magnetometer/calibration -g

You will get something like this if the there was enough dynamics to compute a calibration.

{"status":"success","quality":"poor","trust":"high","maxNumPoints":1000,"numPointsTotal":2886,"numPointsUsed":776,"is2dCalibration":false,"enoughPts":true,"rollMotionValid":true,"pitchMotionValid":true,"yawMotionValid":true,"alignmentNumPtsTotal":334,"alignmentNumPtsUsed":231,"alignmentQuality":0.029893497005105019,"alignmentEnoughPts":true,"alignmentKeptEnoughPts":true,"hardIronCorrection":[-0.28149625658988953,0.081921949982643127,-0.22102254629135132],"softIronCorrection":[0.87645494937896729,-0.033238697797060013,-0.010048907250165939,-0.0034575869794934988,0.81990772485733032,-0.01065436378121376,0.010949188843369484,-0.01831500418484211,0.80841606855392456],"ellipsoidMatrix":[0.1577424556016922,0.76567554473876953,0.980593502521515,-0.32409319281578064,-0.89424312114715576,0.75038570165634155,1.0826467275619507,-0.3253452479839325,0.0798797756433487],"beforeMeanError":0.84757143259048462,"beforeStdError":4.2728862762451172,"beforeMaxError":42.917316436767578,"afterMeanError":0.097497910261154175,"afterStdError":4.4135284423828125,"afterMaxError":37.3183479309082,"meanAccuracy":0.00621096696704626,"stdAccuracy":0.049342647194862366,"maxAccuracy":0.36241316795349121}

Calibration results

Sending this command doesn't stop the calibration, it is still going in the background. You can send this command this multiple times until the results are satisfactory and you want to save them.

Setting the new calibration in the Ellipse

Once the results returned are satisfactory, you will need to set the calibration results to the Ellipse by sending the Hard Iron and Soft Iron corrections in a JSON format before saving the settings.

This is done with the Set Magnetometer Setup command.

sbgEComApi.exe -s <COM> -r <baudrate> /api/v1/settings/aiding/magnetometer -p -b "{\"hardIronCorrection\":[-0.28149625658988953,0.081921949982643127,-0.22102254629135132],\"softIronCorrection\":[0.87645494937896729,-0.033238697797060013,-0.010048907250165939,-0.0034575869794934988,0.81990772485733032,-0.01065436378121376,0.010949188843369484,-0.01831500418484211,0.80841606855392456]}"

You should get the following answer.

{"title":"request successful","needReboot":true}

Saving settings

By default, new settings are only applied in volatile memory. In order to save configuration for future use, you need to use a specific settings save command:

sbgEComApi.exe -s <COM> -r <baudrate> /api/v1/settings/save -p
